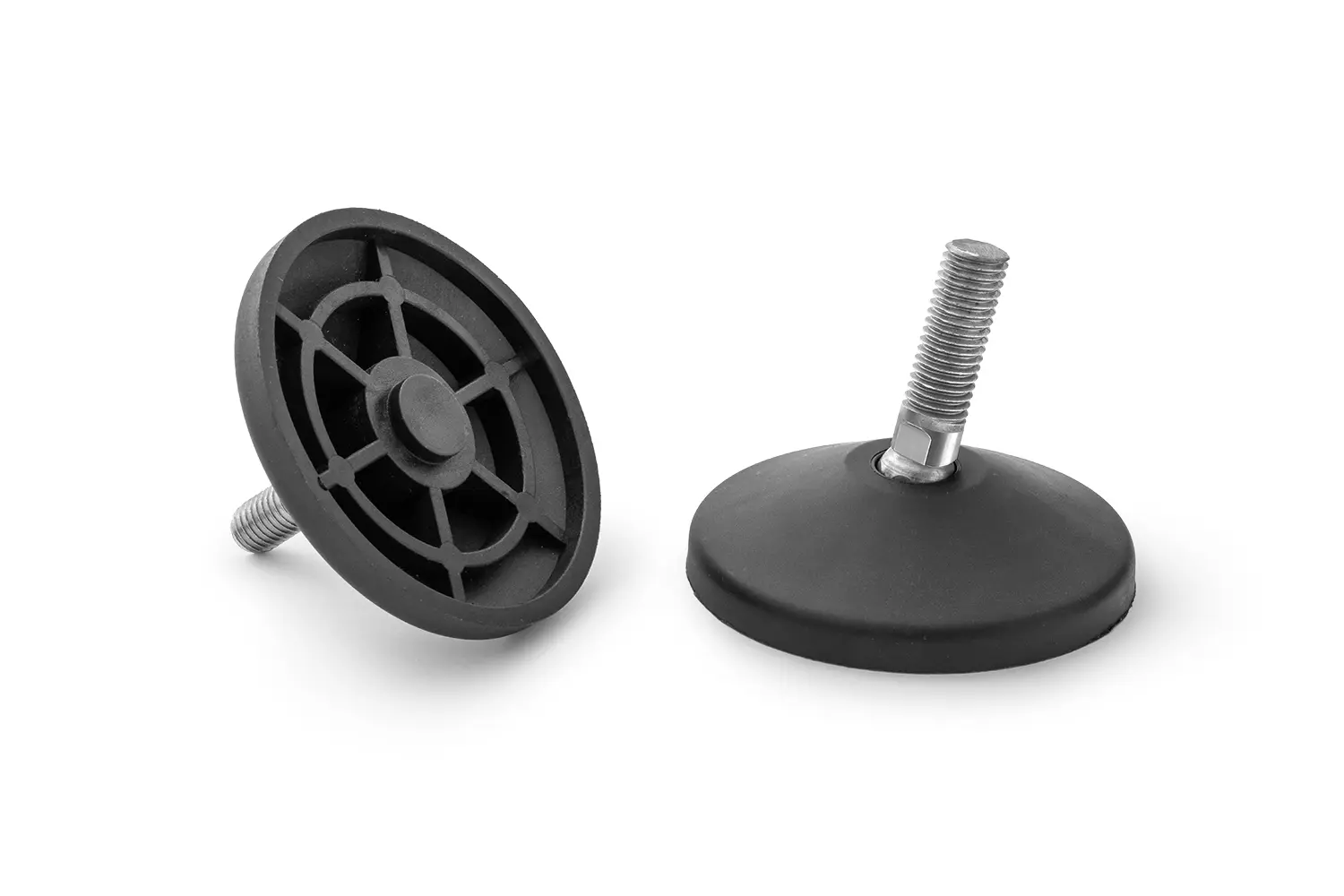

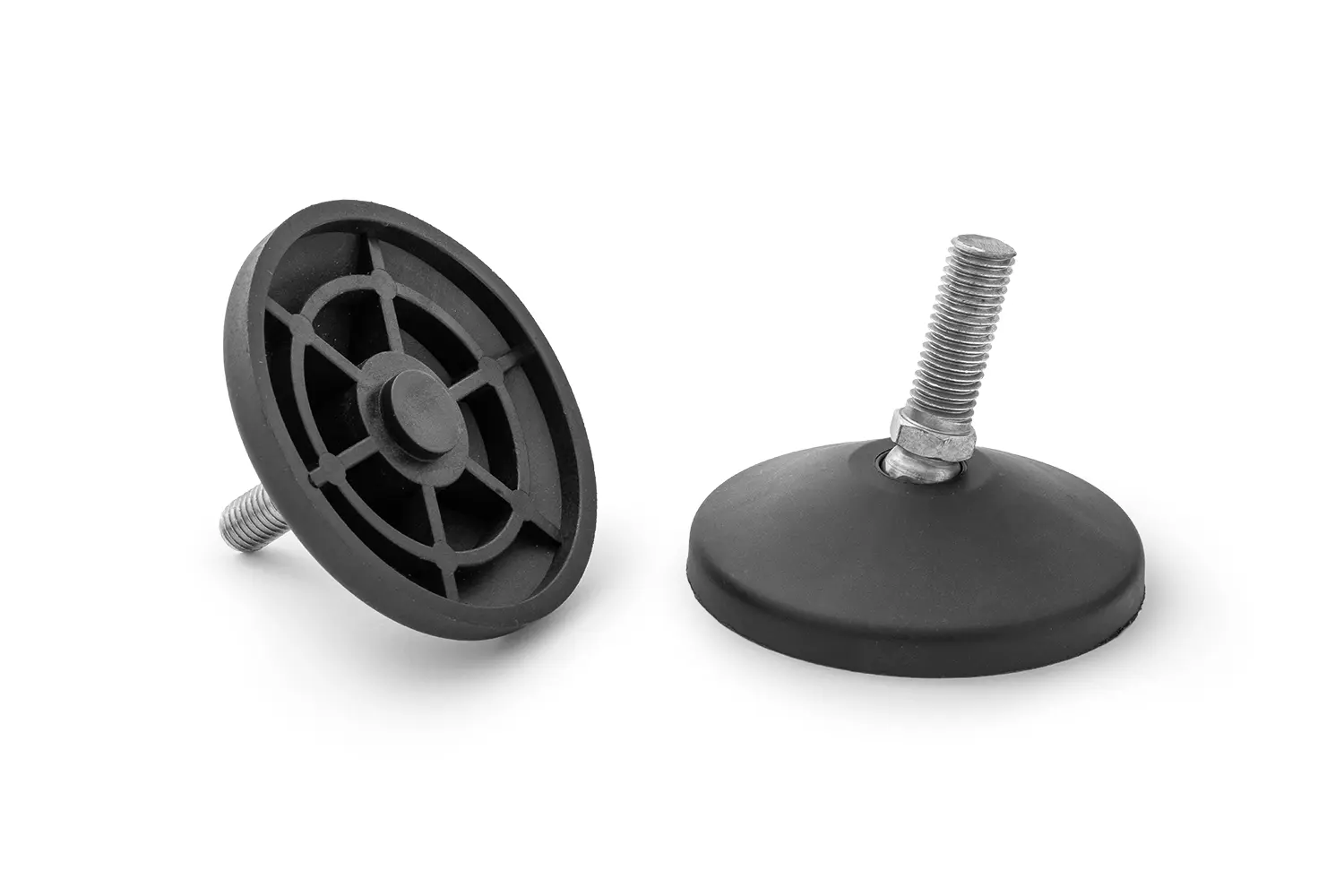

BASE, THREADED STEM
WITH MILLED KEYWAY

base: in reinforced polyamide, black color

stem: threaded and articulated in zinc-plated steel
special requests: inserts can be supplied with custom materials and lengths upon request

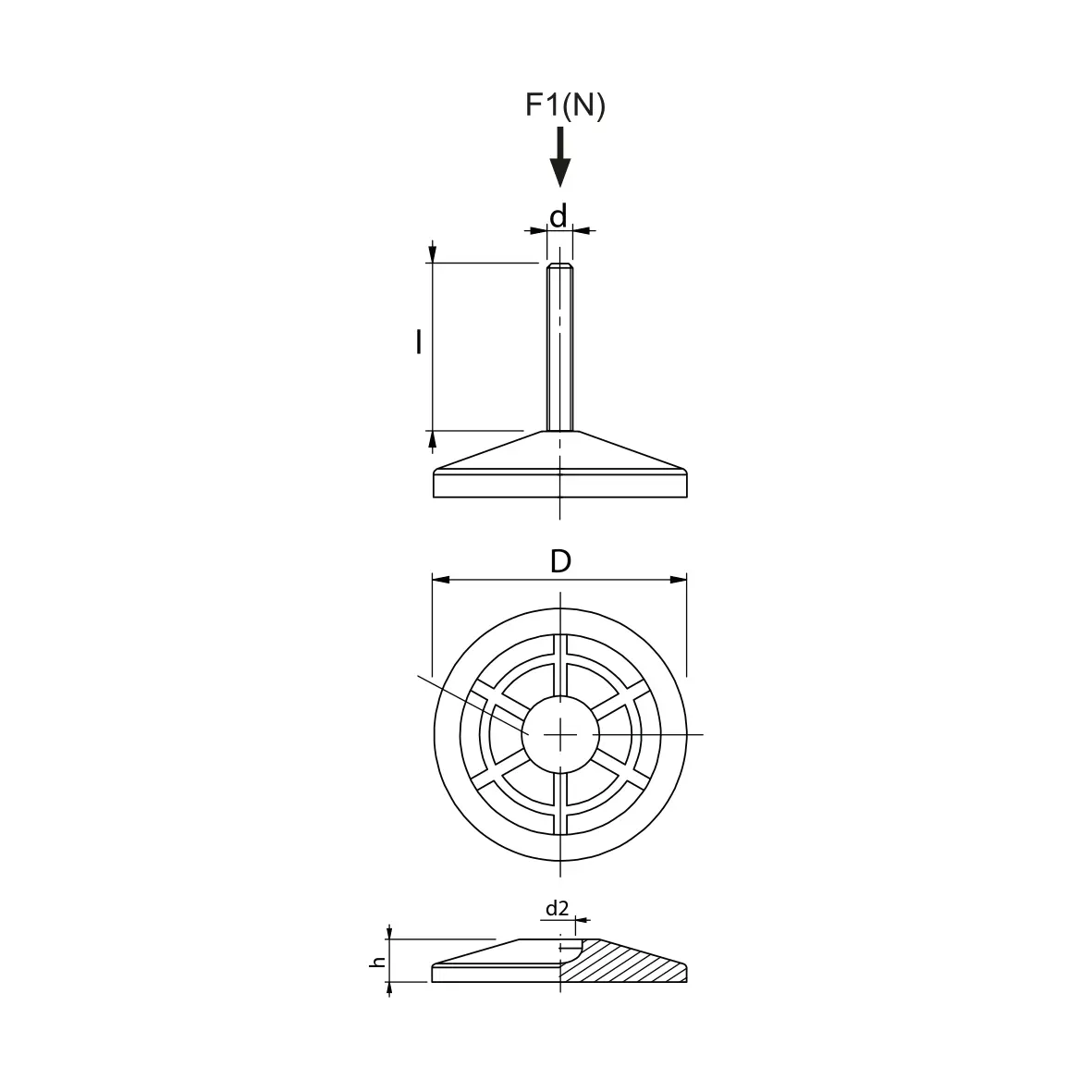

CODICE / CODE __ (+I)	TIPOLOGIA / TYPE	d	D	h	d2	F1(N)	__I
PIEBPSSZNN8016__	Piedino + Perno / Stem + Base	M16	80	20,5	14,5	10.000	70 (cod. 70) 90 (cod. 90) 110 (cod. 02) 130 (cod. 03) 150 (cod. 04)
PIEBPSSZNN0016__	Piedino + Perno / Stem + Base	M16	100	22	14,5	13.000	70 (cod. 70) 90 (cod. 90) 110 (cod. 02) 130 (cod. 03) 150 (cod. 04)
PIEBPSSZNN0020__	Piedino + Perno / Stem + Base	M20	100	22	14,5	13.000	70 (cod. 70) 100 (cod. 01) 130 (cod. 03) 150 (cod. 04) 190 (cod. 05)
PIEBPSSZNN1220__	Piedino + Perno / Stem + Base	M20	124	45	14,5	17.000	70 (cod. 70) 100 (cod. 01) 130 (cod. 03) 150 (cod. 04) 190 (cod. 05)
PIEBPSSZNN1224__	Piedino + Perno / Stem + Base	M24	124	45	14,5	17.000	150 (cod. 04) 190 (cod. 05) 210 (cod. 06)
