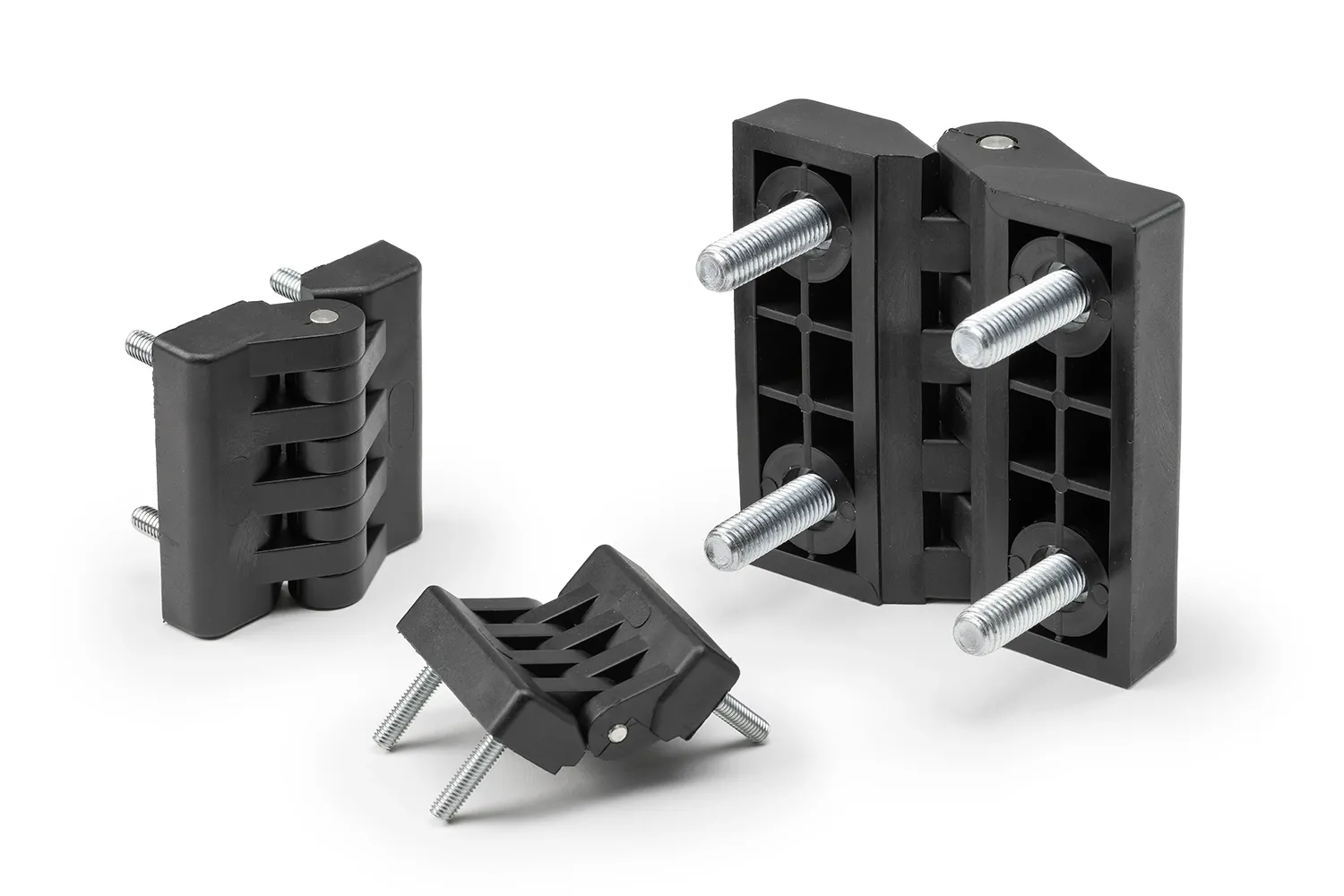

Three black hinges with screws, of different sizes, arranged on a neutral background.

HINGE WITH STUD

material: 30% glass-filled nylon 6
standard color: black
insert: stainless steel pin and galvanized stud
upon request: other colors, galvanized pin, and stainless steel stud
DOWNLOAD TECHNICAL DATA SHEET

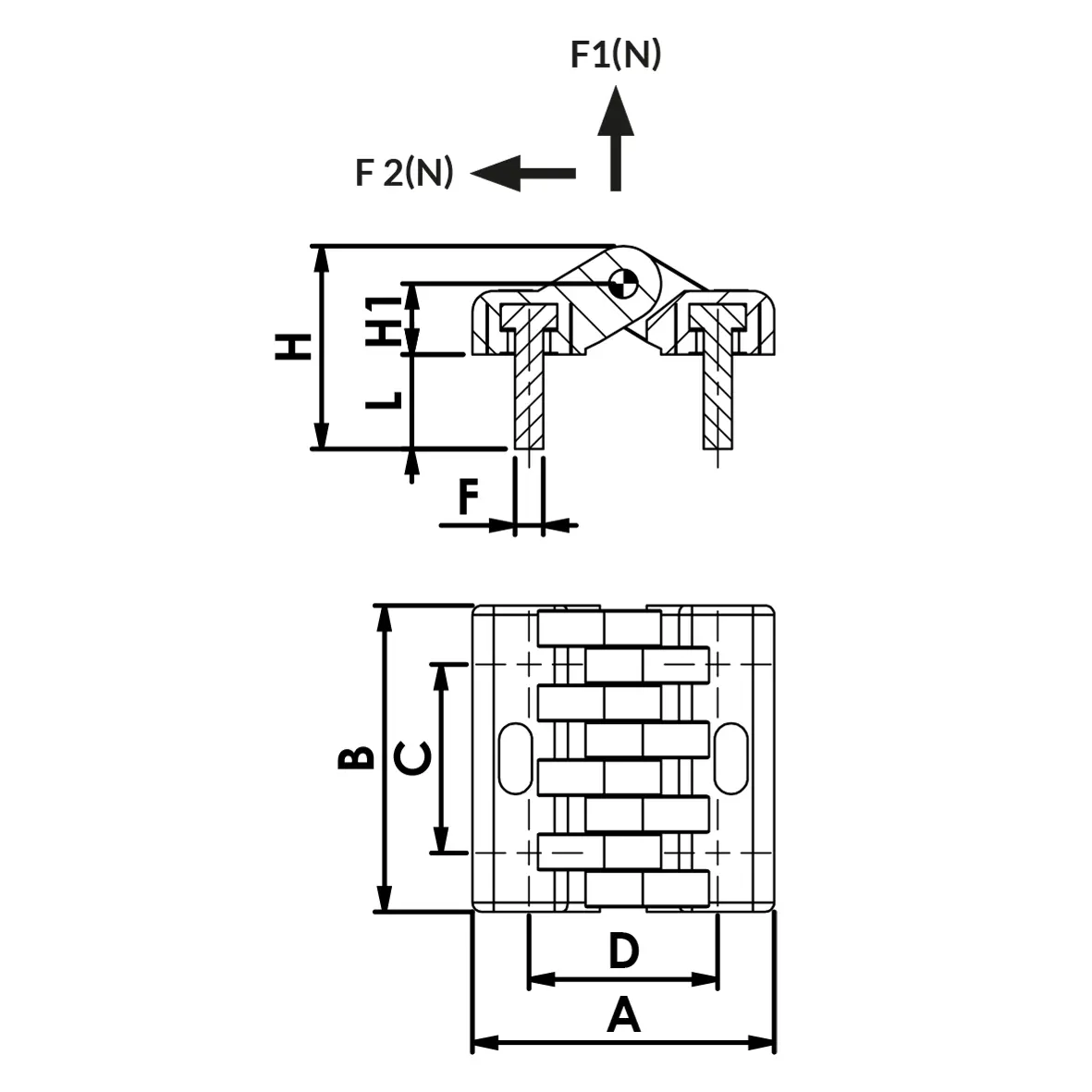

Descriptive diagram of the angular opening of the hinge with screw.
Descriptive diagram of the angular opening of the hinge with screw.
CODICE / CODETIPOLOGIA / TYPEABCDHH1FLF1(N)F2(N)PESO / WEIGHT G
DOWNLOAD
CERVZ00NSN48M520C48 M5X204749,530303913M5204.3001.80049

PLA0148P_5X20.STEP

download file .step

Send download link to:
CERVZ00NSN65M620C65 M6X20646540404315M6204.3001.80093

PLA0165P_6X20.STEP

download file .step

Send download link to:
CERVZ00NSN981030C98 M10X309897,5606364,523M1029,54.3001.800350,5

PLA0198P_10X30.STEP

download file .step

Send download link to:
