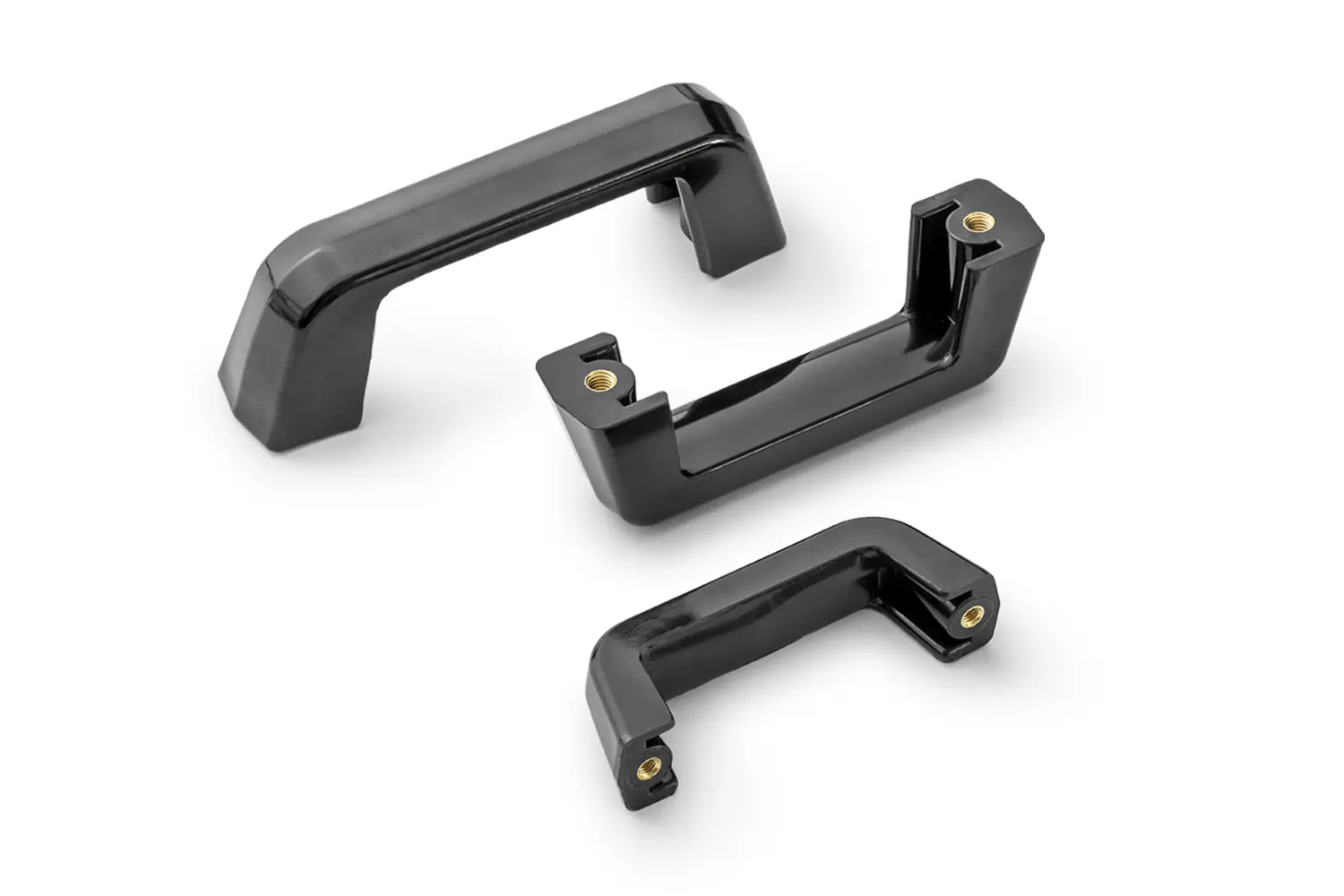

MP BAKELITE HANDLE
WITH BLIND THREADED BUSHING

material: bakelite

standard color: black

inserts: brass bushing with blind threaded hole

DOWNLOAD TECHNICAL DATA SHEET

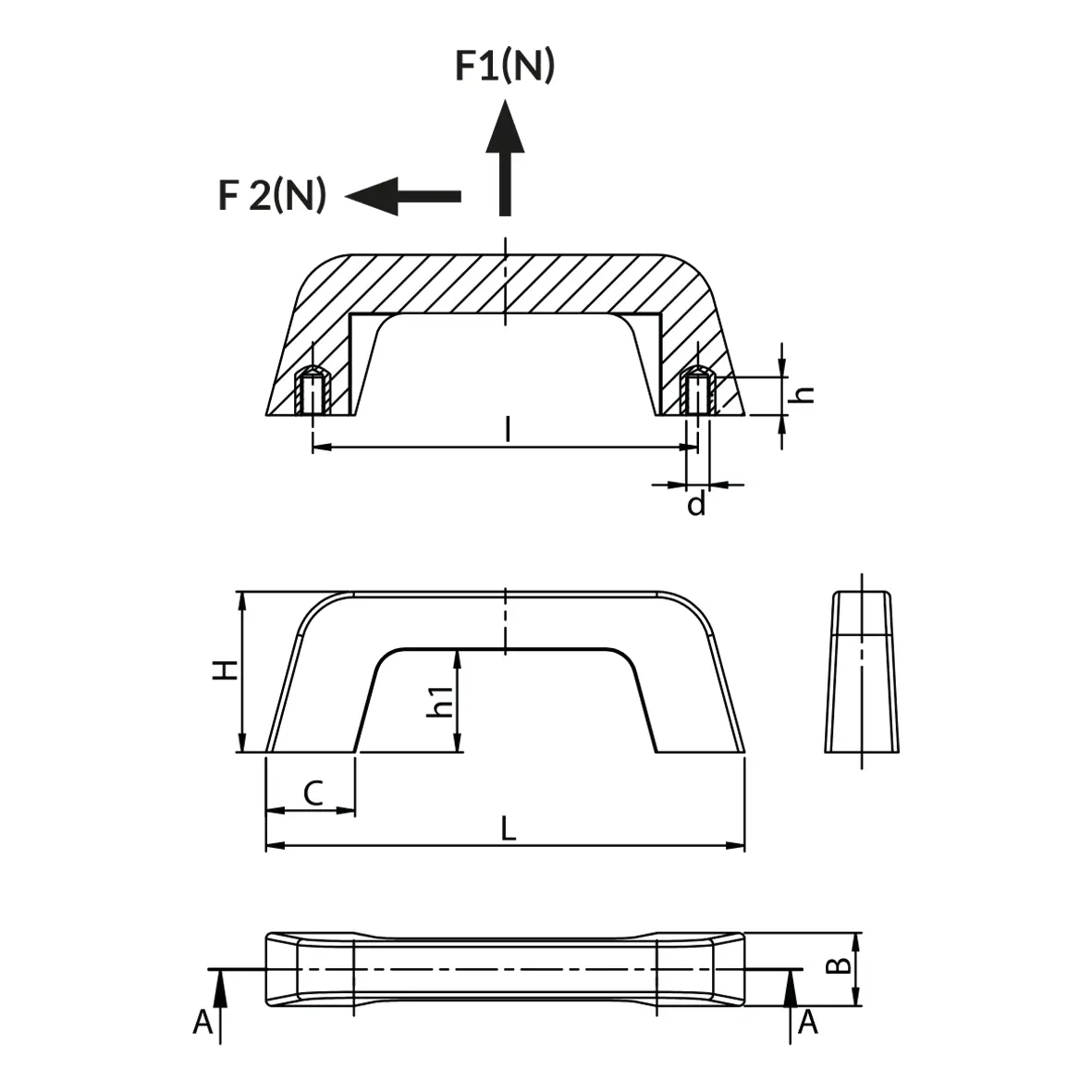

CODICE / CODE	TIPOLOGIA / TYPE	L	I	B	H	h1	C	d1 6H	Q	PESO / WEIGHT G	F1	F2
MANMPBFDBKN110M5	Man MP B Filettata 110 M5 / Handle Threaded Bushing 110 M5	130	109	32	45	29	21	M5	10	94	800	500
MANMPBFDBKN110M6	Man MP B Filettata 110 M6 / Handle Threaded Bushing 110 M6	130	109	32	45	29	21	M6	10	95	800	500
MANMPBFDBKN13210	Man MP B Filettata 132 M10 / Handle Threaded Bushing 132 M10	164	132	38	56	34	30,5	M10	18	193	1500	850
MANMPBFDBKN132M8	Man MP B Filettata 132 M8 / Handle Threaded Bushing 132 M8	164	132	38	56	34	30,5	M8	12	190	1500	850
MANMPBFDBKN15010	Man MP B Filettata 150 M10 / Handle Threaded Bushing 150 M10	187	150	40,5	61	43	35	M8	18	217	2000	1000
MANMPBFDBKN150M8	Man MP B Filettata 150 M8 / Handle Threaded Bushing 150 M8	187	150	40,5	61	43	35	M10	18	216	2000	1000
